Engine mapping, also known as ECU remapping or performance tuning, is the process of modifying a vehicle’s Engine Control Unit software to optimize engine output. By adjusting fuel injection timing, ignition timing, and electronic throttle response, professional tuners can unlock significant horsepower and torque gains.
The most accessible upgrade is Stage 1 remapping, which requires no hardware modifications and can increase power output by 10-30% according to stautomotive.ie. This software-only approach makes performance mapping one of the most cost-effective upgrades for race car drivers seeking immediate improvements.
- Stage 1 ECU remapping can increase power output by 10-30% without any hardware modifications (stautomotive.ie).
- Performance mapping optimizes three core components: fuel injection, ignition timing, and throttle response (AI Overview).
- Dyno tuning is essential for safe mapping, preventing lean mixtures and engine knock (Diaz Motorcycles).
How Does Engine Mapping Unlock Performance?
Stage 1 Remapping: 10-30% Power Gains from Software Alone
Stage 1 remapping represents the entry point to professional engine optimization. This software-only adjustment works with completely stock engine hardware, making it accessible to virtually any vehicle on the market. According to stautomotive.ie, Stage 1 tuning consistently delivers power increases between 10% and 30% over factory settings—a significant gain for minimal investment.
The process involves rewriting the ECU’s fuel and ignition maps to remove manufacturer-imposed limitations. Car makers program engines with conservative settings to ensure reliability under all conditions, meet emissions standards, and accommodate low-quality fuel. Stage 1 tuning optimizes these parameters for premium fuel and ideal operating conditions, extracting power the engine was capable of producing all along.
Key advantages of Stage 1 remapping include:
- Immediate power delivery: Increased horsepower and torque across the entire RPM range without any mechanical changes
- Enhanced drivability: The engine feels more responsive and eager in everyday driving situations
- Potential fuel savings: Under normal cruising conditions, optimized mapping can improve fuel efficiency by 2-5%
- Cost-effectiveness: Typically costing $300-$800, it provides the highest power-per-dollar ratio of any performance modification
- Reversibility: The original factory tune can be restored at any time, preserving warranty options in some regions
- No downtime: Most remaps can be installed in under two hours with the vehicle road-ready immediately after
For amateur racers and track day enthusiasts, Stage 1 offers the perfect balance. It delivers measurable performance gains while maintaining engine reliability and requiring no supportive modifications. The improvement is particularly noticeable in naturally aspirated engines where factory programming often leaves substantial untapped potential.
Throttle Response and Torque: The Immediate Benefits Drivers Feel
The most noticeable improvement from performance mapping isn’t always peak horsepower—it’s the dramatic enhancement in throttle response and low-end torque. These changes transform the driving experience in ways that raw power numbers alone don’t capture.
Stock engine maps frequently include electronic throttle control programming designed for smoothness and fuel economy. This creates a “dead zone” where pressing the accelerator pedal produces little immediate response, followed by a sudden surge.
Performance mapping eliminates this lag by reprogramming the relationship between pedal position and throttle opening. The result is a direct, linear connection where every millimeter of pedal travel produces an immediate and proportional increase in engine power.
This improved throttle response makes the car feel significantly faster even before peak power arrives. Overtaking maneuvers become safer and more confident because power is available instantly without waiting for the engine to “catch up.” On winding roads, drivers can make precise throttle adjustments mid-corner with predictable results—a critical advantage in performance driving.
Along with better throttle response, drivers experience increased torque, particularly in the mid-range RPM band where daily driving occurs. More low-end torque means stronger acceleration from a stop and less downshifting when merging onto highways or climbing hills. The engine pulls harder in every gear, making the vehicle feel more flexible and responsive in real-world conditions.
These improvements extend beyond excitement to actual safety and control. A more responsive throttle allows for finer modulation during performance driving, helping drivers maintain optimal traction. The immediate power delivery makes the car more predictable in emergency situations, whether avoiding obstacles or executing evasive maneuvers.
Combustion Efficiency: The Thermodynamic Science Behind Power
The scientific foundation of engine mapping rests on combustion thermodynamics—the study of how chemical energy in fuel converts to mechanical work. The key metric is Air-Fuel Ratio (AFR), the mass ratio of air to fuel in the combustion chamber. Different operating conditions require different AFR targets for optimal efficiency and power.
Optimal AFR varies significantly across engine operating conditions:
| Operating Condition | Optimal AFR Range | Combustion Efficiency | Primary Goal |
|---|---|---|---|
| Full Load (Wide Open Throttle) | 12.5:1 to 13.0:1 | 90-95% | Maximum power with cooling |
| Steady Cruise (Light Load) | 14.7:1 (stoichiometric) | 85-90% | Fuel economy and emissions |
| Idle | 13.5:1 to 14.0:1 | 80-85% | Smooth operation, stability |
| Warm-up Enrichment | 12.8:1 to 13.5:1 | 88-92% | Stability until operating temp |
During full-throttle acceleration, a richer mixture (lower AFR number) provides several benefits: it cools the combustion chamber through fuel vaporization, reduces peak cylinder temperatures, and prevents detonation while maximizing power output. At steady highway speeds, the stoichiometric ratio of 14.7:1 achieves complete combustion with minimal emissions.
Engine mapping software creates three-dimensional fuel tables with RPM on one axis and engine load (or throttle position) on the other. Each cell contains a specific fuel injection pulse width.
The ECU constantly interpolates between these cells to determine the exact amount of fuel needed for current conditions. Professional tuners adjust these values to hit target AFRs at every operating point, ensuring the engine runs at peak efficiency while staying within safe temperature and pressure limits.
The thermodynamic principle is straightforward: more complete and controlled combustion extracts more energy from each drop of fuel. By precisely controlling the air-fuel mixture and ignition timing, mapping maximizes the pressure exerted on the piston during the power stroke while minimizing heat loss and uncontrolled combustion events.
The Three Pillars of Performance Mapping: Fuel, Spark, and Throttle
Fuel Injection Mapping: Precision Control of Pulse Width and Timing
Fuel injection mapping forms the foundation of all engine tuning. Modern fuel-injected engines use electronic injectors that open for precisely controlled durations—measured in milliseconds—to deliver fuel. The length of time the injector remains open is called pulse width; longer pulse widths deliver more fuel.
Key parameters adjusted during fuel mapping include:
- Injector pulse width: Primary control for fuel quantity, calculated based on engine speed, load, and desired AFR
- Injection timing: The exact crankshaft angle when fuel enters the cylinder, affecting mixture preparation and combustion speed
- AFR targets: Desired air-fuel ratios for different RPM/load combinations, stored in a three-dimensional fuel map
- Fuel pressure compensation: Adjustments for variations in fuel pump output and regulator performance
- Transient fueling: Additional fuel during rapid throttle changes to prevent hesitation or lean spikes
- Battery voltage correction: Compensates for slower injector opening when voltage drops
The fuel map itself is a complex table with engine RPM on one axis and calculated engine load (or throttle position) on the other. Every cell contains a base pulse width value. The ECU uses this map plus corrections for coolant temperature, intake air temperature, barometric pressure, and other sensor inputs to determine final injector opening time.
Incorrect fuel mapping has severe consequences. A lean condition (insufficient fuel) causes excessive combustion temperatures that can melt pistons, burn valves, and warp cylinder heads within minutes.
A rich condition (excess fuel) reduces power, fouls spark plugs, washes oil from cylinder walls, and increases emissions. Professional mapping ensures the engine receives exactly the right fuel quantity at every operating point, maximizing power while protecting components from thermal damage.
Ignition Timing Mapping: Advancing Spark for Torque Gains
Ignition timing determines when the spark plug fires relative to the piston’s position, measured in degrees before top dead center (BTDC). Advancing timing means firing the spark earlier in the compression stroke, allowing more time for combustion to develop peak pressure at the optimal moment in the power stroke.
The relationship between ignition timing and engine output is critical, especially in professional racing where maximum performance is required:
| Timing Setting | Effect on Power/Torque | Risk Level | Typical Use Case |
|---|---|---|---|
| Advanced (32-38° BTDC) | Increased torque and horsepower, especially 2,000-5,000 RPM range | High—risk of detonation if fuel octane insufficient | High-performance racing with premium/high-octane fuel |
| Stock (24-30° BTDC) | Balanced performance with safety margins | Low—designed for varied fuel quality and conditions | Daily driving, OEM reliability focus |
| Retarded (12-22° BTDC) | Reduced power, smoother operation, lower cylinder temperatures | Very low—minimal knock risk | Heavy load conditions, engine protection mode |
| Timing Setting | Effect on Power/Torque | Risk Level | Typical Use Case |
|---|---|---|---|
| Advanced (32-38° BTDC) | Increased torque and horsepower, especially 2,000-5,000 RPM range | High—risk of detonation if fuel octane insufficient | High-performance racing with premium/high-octane fuel |
| Stock (24-30° BTDC) | Balanced performance with safety margins | Low—designed for varied fuel quality and conditions | Daily driving, OEM reliability focus |
| Retarded (12-22° BTDC) | Reduced power, smoother operation, lower cylinder temperatures | Very low—minimal knock risk | Heavy load conditions, engine protection mode |
Advancing ignition timing typically provides the single largest horsepower gain of any single adjustment—often 15-25 HP on a naturally aspirated four-cylinder engine. However, advancing too far causes the unburned fuel-air mixture to auto-ignite from heat and pressure before the spark plug fires. This detonation or “knock” creates shockwaves that can destroy pistons, rods, and bearings in minutes.
High-octane fuel resists auto-ignition better than regular pump gasoline. This property allows tuners to advance timing further when premium fuel is used, extracting substantially more power. According to Driven Racing Oil, a quality tune matches ignition advance to the specific octane rating being used—what works safely on 93 octane may cause destructive knock on 87 octane.
Modern engines use knock sensors to detect detonation and automatically retard timing when knock occurs. Performance mapping optimizes the advance curve while leaving sufficient safety margin to prevent knock under all operating conditions, including high intake air temperatures encountered during racing.
Throttle Response Tuning: Reducing Electronic Lag for Immediate Power
Most modern vehicles use electronic throttle control (ETC) or “drive-by-wire” systems. Instead of a mechanical cable connecting the accelerator pedal to the throttle body, a pedal position sensor sends signals to the ECU, which then commands an electric motor to open the throttle. While this system enables advanced traction and stability controls, manufacturers often program it for smoothness and fuel economy rather than responsiveness.
Performance mapping modifies the throttle response table—the mathematical relationship between pedal position and throttle opening percentage. Stock programming might only open the throttle 40% when the pedal is pressed halfway, smoothing out inputs and reducing emissions. A performance tune makes this relationship more direct and aggressive.
For example, at 25% pedal travel, a performance map might open the throttle 70% instead of 40%. This eliminates the unresponsive “dead zone” common in stock vehicles. The result is immediate, predictable power delivery that drivers can modulate precisely with their right foot.
This transformation is particularly valuable in performance driving and racing. On track, drivers need instant throttle response to power smoothly out of corners without wheelspin.
In drag racing, a sluggish throttle can lose races at the starting line by tenths of a second. Even on public roads, reduced electronic lag makes the car feel more alive and connected to the driver’s inputs.
According to Houston Performance Diesel, throttle response tuning often provides the most noticeable improvement in daily driving, even more so than peak power increases. The engine feels more eager and responsive at all speeds, making the vehicle more engaging to drive while actually improving control during aggressive maneuvers.

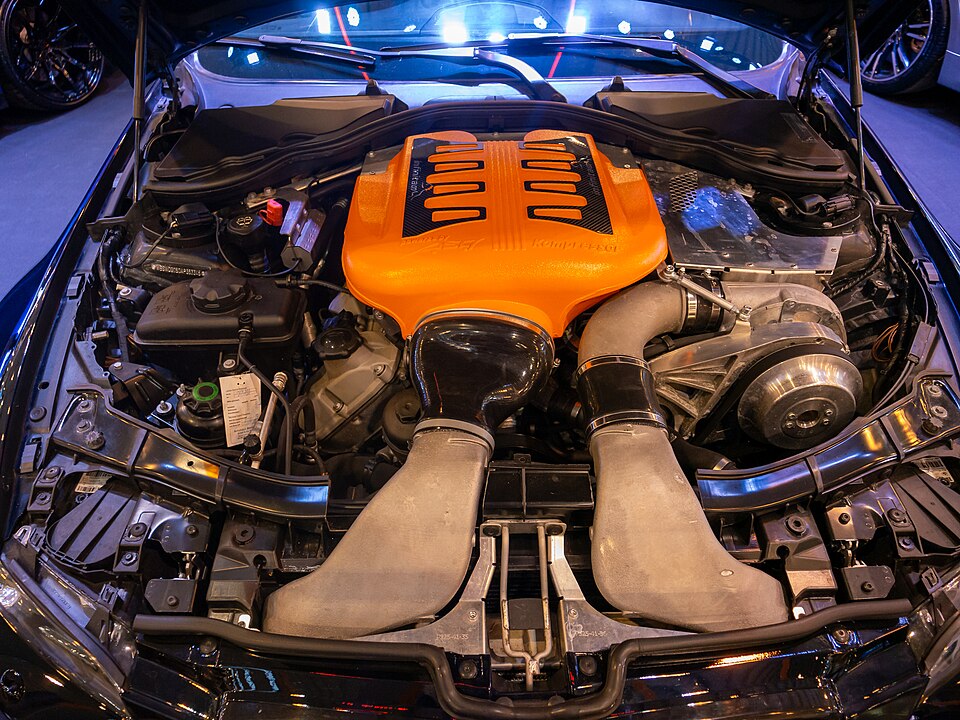

From Stock to Race-Ready: Mapping Stages and Dyno Tuning
Stage 1, 2, and 3: Matching Map to Hardware Modifications
Engine mapping stages correspond directly to the level of mechanical modification performed on the engine. Each stage requires increasingly sophisticated tuning to safely realize performance gains without causing damage.
The three primary mapping stages:
| Stage | Hardware Requirements | Typical Power Gain | Target Application |
|---|---|---|---|
| Stage 1 | Completely stock engine, no modifications | 10-30% increase over stock | Daily drivers, first-time tuners, mild performance enthusiasts |
| Stage 2 | Performance air intake, cat-back exhaust system, possibly upgraded intercooler on turbocharged engines | 20-40% increase over stock | Track day cars, serious enthusiasts, vehicles with basic bolt-on modifications |
| Stage 3 | Major modifications: larger turbocharger/supercharger, forged internal components, upgraded fuel system (injectors, pump), enhanced cooling | 40-100%+ increase over stock | Full race cars, heavily modified street cars, professional motorsport applications |
Stage 3, optimized for professional racing and heavily modified applications, involves fundamental changes to the engine’s breathing capacity and structural strength.
| Stage | Hardware Requirements | Typical Power Gain | Target Application |
|---|---|---|---|
| Stage 1 | Completely stock engine, no modifications | 10-30% increase over stock | Daily drivers, first-time tuners, mild performance enthusiasts |
| Stage 2 | Performance air intake, cat-back exhaust system, possibly upgraded intercooler on turbocharged engines | 20-40% increase over stock | Track day cars, serious enthusiasts, vehicles with basic bolt-on modifications |
| Stage 3 | Major modifications: larger turbocharger/supercharger, forged internal components, upgraded fuel system (injectors, pump), enhanced cooling | 40-100%+ increase over stock | Full race cars, heavily modified street cars, professional motorsport applications |
Stage 1 tuning extracts power from the engine as delivered from the factory. Manufacturers often de-tune engines to ensure reliability under extreme conditions, meet global emissions standards, and accommodate poor-quality fuel available in some markets. Stage 1 simply optimizes the software within the mechanical limits of stock components.
Stage 2 assumes the engine can move more air through upgraded intake and exhaust systems. The mapping must adjust fuel delivery, boost pressure (if turbocharged), and ignition timing to match this increased airflow.
More aggressive timing may be possible with better cooling from an upgraded intercooler. Stage 2 tunes typically target premium fuel and require supporting modifications to avoid lean conditions at full throttle.
Stage 3 involves fundamental changes to the engine’s breathing capacity and structural strength. Larger turbochargers, significantly higher boost pressures, and forged internal components change the engine’s fundamental characteristics.
The mapping becomes highly specialized, often requiring custom development on a dynamometer with extensive data logging to prevent catastrophic failure. Stage 3 maps are rarely “off-the-shelf” and must be tailored to each specific engine combination.
Dyno Tuning: The Essential Safety Net for Safe Power Gains
Dyno tuning is not optional for professional engine mapping—it is absolutely essential. A dynamometer (dyno) measures engine power output while the vehicle is securely restrained and the engine is placed under controlled load. This laboratory-like environment allows tuners to make precise adjustments and immediately see their effects.
Critical benefits of professional dyno tuning include:
- Controlled testing environment: The engine operates under consistent, repeatable load conditions while all parameters are monitored
- Real-time data acquisition: Tuners watch critical metrics including air-fuel ratio (via wideband oxygen sensor), exhaust gas temperature, knock sensor activity, and boost pressure as adjustments are made
- Immediate danger detection: Any unsafe conditions—lean mixtures, excessive knock, overheating—are identified instantly before causing damage
- Accurate power measurement: The dyno provides precise horsepower and torque readings to verify gains and validate that targets are achieved
- Iterative refinement: The tuner makes small adjustments, tests, analyzes data, and repeats—a process impossible without a dyno
- Comprehensive data logging: The session generates a complete record of all sensor data for future reference, troubleshooting, or replication
According to Diaz Motorcycles, attempting to tune an engine without a dyno is fundamentally reckless. A map that performs safely at part throttle may become destructive at wide-open throttle.
Ignition timing that seems benign at 3,000 RPM can cause violent knock at 6,000 RPM. The dyno allows the tuner to incrementally increase load and RPM while constantly monitoring the engine’s health through multiple sensor inputs.
Dyno tuning prevents the most common causes of engine failure in tuned vehicles: lean air-fuel ratios and excessive ignition advance. By running the engine through its entire operating range while measuring exhaust gas composition, tuners can ensure fueling remains safe at all loads. Similarly, by carefully advancing timing while listening for knock and watching knock sensor feedback, they find the maximum safe advance for the specific fuel being used.
Avoiding Engine Knock and Lean Mixtures: The Reliability Balance
The central challenge of performance mapping is balancing maximum power with long-term reliability. Two primary dangers threaten engines: detonation (engine knock) and lean fuel mixtures. Professional tuning navigates this balance through careful calibration and conservative safety margins.
Engine knock occurs when the air-fuel mixture ignites spontaneously from heat and pressure before the spark plug fires. This uncontrolled combustion creates shockwaves that collide with the normally burning flame front, producing a metallic pinging sound.
Persistent knock can punch holes in pistons, bend connecting rods, damage bearings, and crack cylinder heads—all within minutes of operation. According to Driven Racing Oil, detonation is the most common cause of catastrophic engine failure in tuned vehicles.
Lean fuel mixtures (too much air, not enough fuel) cause equally severe damage. Lean conditions raise combustion temperatures dramatically, leading to melted pistons, burned valves, and pre-ignition.
They also increase the likelihood of knock. A mixture that runs safely at part throttle can become dangerously lean at full load if not properly mapped across all conditions.
Achieving the reliability balance requires:
- Conservative safety margins: Leaving 2-3 degrees of ignition timing on the table to accommodate varying fuel quality and intake temperatures
- Comprehensive fueling: Ensuring adequate fuel volume and pressure at all RPM levels, especially under high load
- Temperature monitoring: Watching exhaust gas temperatures (EGT) as an indicator of combustion health; excessive EGTs signal lean conditions or overly advanced timing
- Fuel quality consideration: Tuning for the lowest octane fuel likely to be used, or clearly communicating the need for premium fuel
- Real-world validation: Testing the tuned vehicle on the road or track under actual operating conditions to confirm safety margins hold
High-octane fuel plays a crucial role in this balance. With its greater resistance to uncontrolled ignition, premium fuel allows more aggressive ignition timing—the single biggest factor in power production.
For this reason, performance maps are often optimized for specific octane ratings. Running a high-octane-tuned engine on lower-octane fuel without retarding timing can cause immediate knock damage.
According to Diaz Motorcycles, the true measure of a quality tune isn’t just peak horsepower on a dyno—it’s the engine’s ability to sustain that power without overheating, knocking, or showing stress during extended track sessions. A professional tuner prioritizes reliability alongside performance, understanding that an engine that fails after one race weekend provides zero value to the driver.
The most surprising finding in performance mapping is how much power remains untapped in stock engines. A basic Stage 1 remap delivering 10-30% more power for a few hundred dollars challenges the assumption that significant performance requires expensive mechanical modifications. This cost-effectiveness makes professional tuning accessible to far more enthusiasts than full engine builds.
For anyone considering engine mapping, the specific action step is clear: research and select a reputable dyno tuner with documented experience in your specific make and engine type. Ask about their safety protocols, data logging practices, and whether they offer a warranty on their work. A quality tune protects your investment while unlocking your engine’s true potential, making it one of the smartest performance upgrades available.
