Engine Tuning Basics: Getting the Most Power from Your Race Engine

Engine tuning for racing maximizes power and reliability through precise adjustments to air-fuel ratio, ignition timing, and ECU mapping. These adjustments are performed on a dynamometer (dyno) to simulate real-world track loads, allowing accurate measurement and safe optimization. This comprehensive guide explores the fundamentals of engine mapping, fueling strategies, and ignition timing control to help you extract maximum performance from your race engine while maintaining durability.

Understanding these core principles is essential for any professional racing engineer or driver seeking competitive advantage. We will cover how custom ECU maps differ from factory settings, the critical role of dyno tuning, and the specific parameters that define a winning engine.

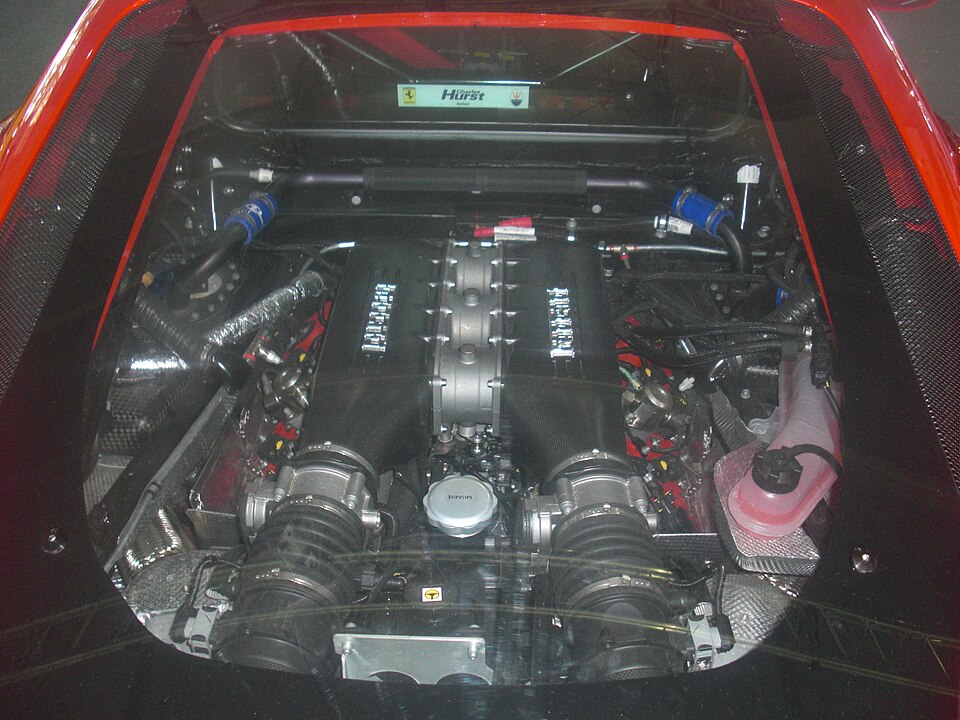

Engine Mapping: Recalibrating Your ECU for Racing Performance

Beyond Factory Settings: Why Racing Requires Custom ECU Maps

Modern production engines use factory ECU maps that prioritize emissions compliance, fuel economy, and drivability. These stock maps are conservative to meet regulations like Euro 6 or EPA Tier 3 and ensure reliability for average drivers. Racing demands bespoke ECU calibrations that extract maximum power and throttle response while tolerating higher stresses, temperatures, and RPM limits.

Performance tuning involves recalibrating the ECU to optimize for racing, often deviating from factory settings designed for broader applications and emissions compliance. Custom maps allow precise control over fuel delivery, ignition timing, boost pressure, and variable valve timing, tailoring the engine to track demands—whether high-speed straights or tight corners. This deviation is fundamental to unlocking a race engine’s full potential.

For teams like Sarah Moore Racing, these custom maps are essential to compete at the highest levels. Racing maps also often disable emissions-related functions like EGR and catalytic converter monitoring to eliminate restrictions and simplify diagnostics.

Dyno Tuning: Simulating Track Conditions for Accurate Adjustments

A dynamometer (dyno) is essential for professional engine tuning. It simulates real-world loads in a controlled environment, allowing safe measurement of power, air-fuel ratio, and exhaust temperatures. According to HP Academy, dyno tuning is crucial for simulating track conditions and optimizing performance.

The dyno applies resistance to mimic aerodynamic drag and rolling resistance, enabling incremental ECU adjustments while observing real-time data on a laptop, including torque curves, horsepower, and lambda values. Without a dyno, tuning would be risky guesswork that could damage the engine from detonation or lean conditions. The controlled setting permits extensive data logging to identify lean spots, knock, or fuel issues that only appear under load.

Moreover, dyno tuning verifies performance after modifications, ensuring changes produce expected gains. Cooling the dyno cell and performing multiple pulls for consistency are standard practice.

Ultimately, dyno tuning ensures the engine delivers consistent, reliable power under actual racing loads. In Formula 1, dyno testing is integral; the Formula 1 technical regulations even specify dyno validation procedures for power unit homologation, underscoring its importance.

Fuel Delivery Maps: Precision Control Over Injection

Fuel delivery maps define how much fuel is injected and when, based on engine speed (RPM) and load. Key parameters include:

• Injector timing: The crank angle when fuel injection begins, typically 10–30° BTDC (The Diesel Store). Proper timing ensures fuel atomizes before ignition. In gasoline direct injection (GDI) systems, timing is critical to avoid wall wetting; port injection is less sensitive.
• Pulse width: Injector open time in milliseconds, determining fuel volume. Calculated from desired fuel mass (based on airflow and target AFR) and injector flow rate. Includes adjustments for acceleration enrichment and deceleration fuel cut.
• Fuel pressure: Higher pressure improves atomization; racing systems use high-pressure pumps (up to 100 bar for gasoline) and sometimes variable pressure control to maintain consistent injection across load ranges.

These parameters are mapped across RPM/load and adjusted on the dyno for optimal combustion efficiency and power output. In Formula 1, fuel delivery integrates with hybrid systems; the Formula 1 power unit technology article details how these systems combine internal combustion and energy recovery for maximum efficiency, with fuel injection playing a key role.

Ignition Timing Maps: Optimizing Spark Advance

Ignition timing maps control when the spark plug fires relative to piston position. Adjustments include:

• Advancing timing: Firing earlier (BTDC) increases power and torque. Universal Technical Institute and HOT ROD Network confirm advancing improves response and output. Over-advancing causes knock.
• Retarding timing: Delaying spark reduces pressure/temperature, preventing detonation under high load or during warm-up.
• MBT (Maximum Brake Torque): Timing that yields peak pressure ~18° after TDC, maximizing work without knock. Determined by dyno sweep where torque peaks.
• Timing curve: As RPM increases, more advance is needed to maintain optimal pressure. Maps are 2D tables (RPM vs load) with corrections for intake air temperature, coolant temperature, and knock sensor feedback.

These maps are fine-tuned on the dyno with knock sensors. With the Formula 1 budget cap limiting development resources, efficient dyno tuning is critical to maximize performance within financial constraints, making every hour on the dyno count.

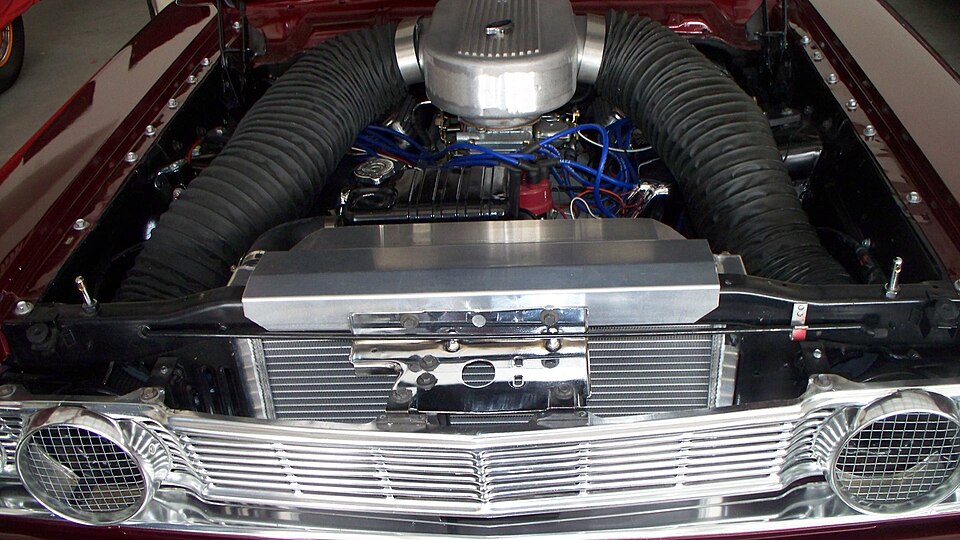

What Air-Fuel Ratio Maximizes Racing Power?

The Optimal AFR Range: 12.5:1 to 13.5:1 for Peak Power

The air-fuel ratio (AFR) is the mass ratio of air to fuel. For racing, the optimal AFR for maximum power is between 12.5:1 and 13.5:1. This is richer than the stoichiometric ratio of 14.7:1, which is ideal for complete combustion with minimal emissions but not for peak power.

AFR Ratio	Description	Effect on Power/Engine
14.7:1	Stoichiometric (theoretical ideal)	Efficient for emissions; not optimal for maximum power; runs hotter
12.5:1 – 13.5:1	Optimal racing range	Richer mixture cools combustion chamber, prevents detonation, yields peak power
< 12.5:1	Too rich	Incomplete combustion, fouled spark plugs, reduced power, higher fuel consumption
> 13.5:1	Too lean	Higher combustion temperatures, risk of detonation, potential engine damage

The richer mixture in the 12.5–13.5:1 range provides cooling and detonation prevention, making it safer for high-performance engines under sustained load. AFR targets may vary slightly depending on fuel type (e.g., methanol vs gasoline) and engine design, but the 12.5–13.5:1 window is a reliable starting point for most racing applications.

Why Run Richer Than Stoichiometric? Cooling and Detonation Prevention

Running a richer AFR than stoichiometric offers two critical benefits. First, excess fuel acts as a coolant, absorbing heat during vaporization and reducing peak combustion temperatures. This protects pistons, valves, and cylinder heads from thermal stress.

Second, a richer mixture slows the flame front, helping prevent detonation—the uncontrolled combustion that can destroy engine components. According to research, the 12.5:1 to 13.5:1 range provides a slightly richer mixture than stoichiometric (14.7:1), which cools the combustion chamber and prevents detonation. Knock/detonation is a critical limit caused by premature combustion, which can damage the engine.

By maintaining the optimal racing AFR, tuners can safely advance ignition timing and increase boost to extract maximum power without crossing the detonation threshold. This balance is essential for endurance racing where engines must survive hours of high-load operation.

Additionally, richer mixtures help cool valves and reduce pre-ignition risk, especially in turbocharged engines where intake temperatures are higher. Tire compound selection also influences engine load; understanding tire compound strategy helps engineers adjust AFR for varying track conditions and tire wear characteristics.

Injector Timing: 10–30 Degrees BTDC for Complete Combustion

Injector timing determines when fuel enters the cylinder relative to piston position. Proper timing ensures complete combustion and power.

• Atomization time: Fuel injected too late may not vaporize before ignition, causing uneven mixture and power loss. The Diesel Store states injector timing typically ranges from 10–30° BTDC. This window gives fuel time to atomize and mix with air. In port injection, timing is less critical; in GDI, it’s crucial because fuel sprays directly onto the piston crown.
• Optimal range: Most racing engines target 15–25° BTDC, but exact values depend on combustion chamber design, fuel type, and injection pressure. Advanced timing can improve power but may increase NOx emissions; retarded timing reduces power but lowers temperatures.
• Effects of incorrect timing:
• Too early: Fuel may condense on chamber walls, causing poor mixture and potential hydro-lock if extremely advanced.
• Too late: Incomplete vaporization leads to lean spots, mis-fires, and higher exhaust gas temperatures.
• Dynamic adjustment: Modern ECUs vary injector timing based on RPM and load, and may use multiple injection events (pilot, main, post) for better control. In sprint race formats, where engines are pushed hard for short durations, injector timing maps may be more aggressive; learn about the Formula 1 sprint race format and its impact on engine tuning.

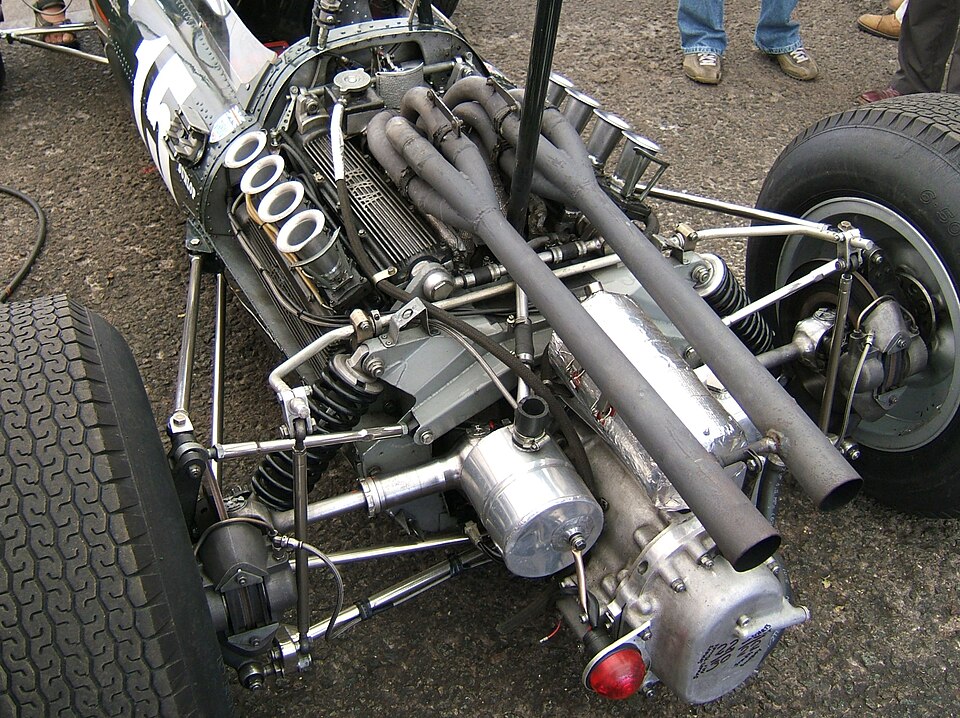

Ignition Timing: Balancing Advance for Power and Detonation

Advancing Timing: The Key to More Power and Torque

Ignition timing refers to the crank angle at which the spark plug fires, measured in degrees before Top Dead Center (BTDC). Advancing timing means firing the spark earlier in the compression stroke. This allows more time for the fuel-air mixture to burn completely before the piston begins its power stroke, resulting in higher cylinder pressure at the optimal moment.

Universal Technical Institute and HOT ROD Network confirm that advancing ignition timing increases power, torque, and engine response. However, over-advancing can cause peak pressure to occur too early, leading to detonation and potential engine damage. The tuner’s goal is to advance timing just enough to maximize cylinder pressure around 18 degrees after TDC, which delivers the greatest torque to the crankshaft.

This fine balance requires careful dyno testing with knock sensors to avoid destructive detonation while extracting every horsepower. Advancing timing also increases exhaust gas temperature, which can affect turbocharger spool in forced-induction engines. Therefore, timing maps must be coordinated with boost control and fuel mapping to achieve optimal performance safely.

Optimal Peak Pressure: 18 Degrees After TDC

The ideal ignition timing positions peak cylinder pressure approximately 18 degrees after Top Dead Center (TDC). This timing ensures expanding gases apply maximum force to the piston when it is most advantageous for converting pressure into torque. Key points:

• Maximum Brake Torque (MBT): The timing that achieves peak pressure at 18° after TDC is called MBT timing. It represents the theoretical optimum for power production without knock.
• Why 18°?: This delay accounts for the finite burn duration of the fuel-air mixture. If pressure peaks before TDC, it works against the piston’s upward motion; if too late, the piston has traveled too far down, wasting potential work.
• Achieving MBT: On the dyno, tuners advance timing in small increments while monitoring cylinder pressure traces and knock sensors until the pressure peak aligns with 18° after TDC. This is the sweet spot before detonation limits are reached.
• Safety margin: In the absence of a knock sensor, a retard of 1–2 degrees from MBT is recommended as a safety buffer, as noted by HP Academy. Engines with knock sensors can often run at MBT safely, as the sensor will pull timing if knock is detected.

Hitting this target consistently across the RPM range is the essence of effective ignition tuning.

Detonation Control: Retarding Timing and Safety Margins

Detonation (knock) occurs when the air-fuel mixture ignites spontaneously due to excessive heat and pressure, producing a damaging shockwave. Controlling ignition timing is the primary defense. The following comparison highlights the effects:

Action	Effect on Engine	When to Use
Advance timing	Increases cylinder pressure and temperature; boosts power and torque	Under normal conditions to approach MBT limit
Retard timing	Lowers cylinder pressure and temperature; reduces power but prevents knock	When knock is detected, under high load/boost, or with low-octane fuel

Retarding timing reduces the likelihood of detonation by slowing the pressure rise and lowering peak temperatures. According to Universal Technical Institute, retarding ignition timing is used to reduce detonation. Additionally, if the engine lacks a knock sensor, HP Academy advises maintaining a safety margin of 1–2 degrees timing retard from the MBT setting to avoid accidental knock.

This conservative approach protects the engine at the cost of a small power sacrifice, which is often acceptable in endurance racing where reliability is paramount. Other detonation control methods include using higher-octane fuel, improving cooling, water injection, or reducing compression ratio, but timing adjustment is the most immediate and effective tool. NASCAR teams, for instance, often prioritize durability for long races; their pit stop strategies reflect this balance between speed and engine longevity, with engine tuning favoring reliability over absolute peak power.

Most surprising finding: The optimal air-fuel ratio for peak power is richer than stoichiometric (12.5:1–13.5:1 vs 14.7:1), which cools the combustion chamber and prevents detonation—counterintuitive to many who assume leaner mixtures yield more power. Action step: Begin by dyno-tuning your engine to establish a safe baseline AFR and ignition timing, then make incremental adjustments while monitoring for knock. Use data logging to refine maps across the entire RPM and load range, always prioritizing reliability alongside power gains.

Consider investing in a quality wide-band O2 sensor and a data acquisition system to track lambda, knock, and temperatures in real time. With patience and careful testing, you can unlock significant performance improvements while keeping your race engine healthy season after season.
